| Product Name | Speaker wire | ||
| Model specifications | 16 300V 4×1.5 mm2 | ||

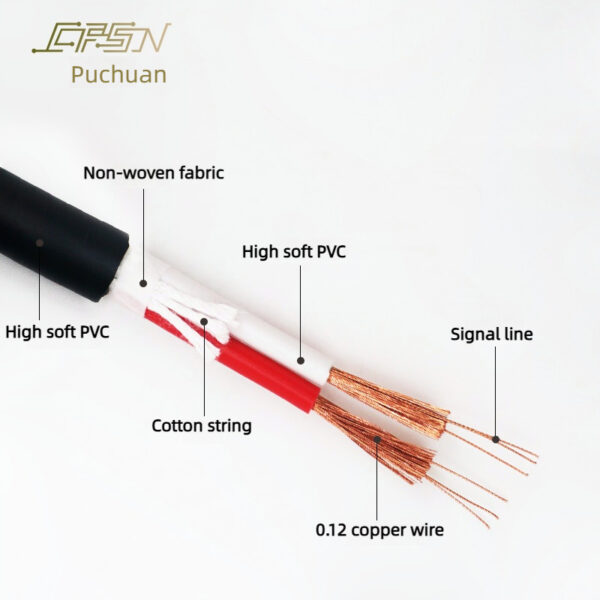

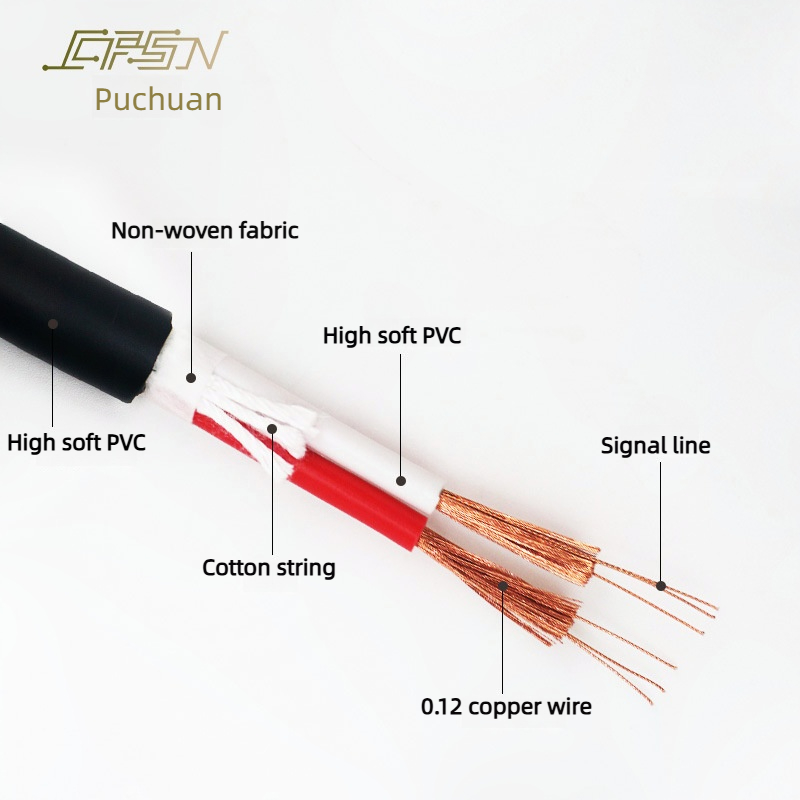

| Processing | unit | Structure of the project | |

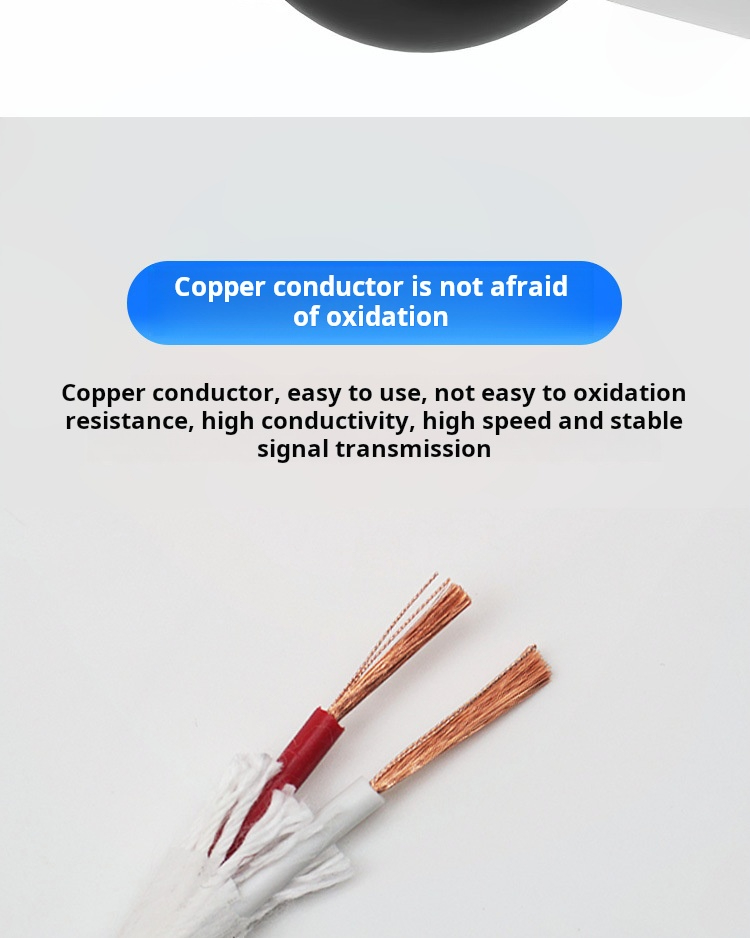

| Conductor | Material | − | BC |
| Construction | (No.mm) | 46/0.15BS | |
| OD. | mm | 1.2±0.05 | |
| Insulation | Material | − | soft PVC |
| Average | mm | ≥0.8 | |
| OD. | mm | 2.7±0.1 | |
| Colour | − | White, red, blue, black | |
| Assembly | Drain Wire | – | / |
| Fill | – | Cotton rope | |
| Material | – | Non-woven fabrics | |
| wide | mm | 0.06× 22 | |
| Coverage | % | 20 | |
| OD. | mm | 6.90±0.1 | |
| static screen | Way | – | / |
| Material | – | / | |
| Construction | (No./mm) | / | |
| Coverage | ％ | / | |
| OD. | mm | / | |
| Jacket | Material | − | 90P soft PVC |
| Average | mm | 1.55±0.05 | |
| OD. | mm | 10.0±0.5 | |
| Colour | − | Matte Black | |

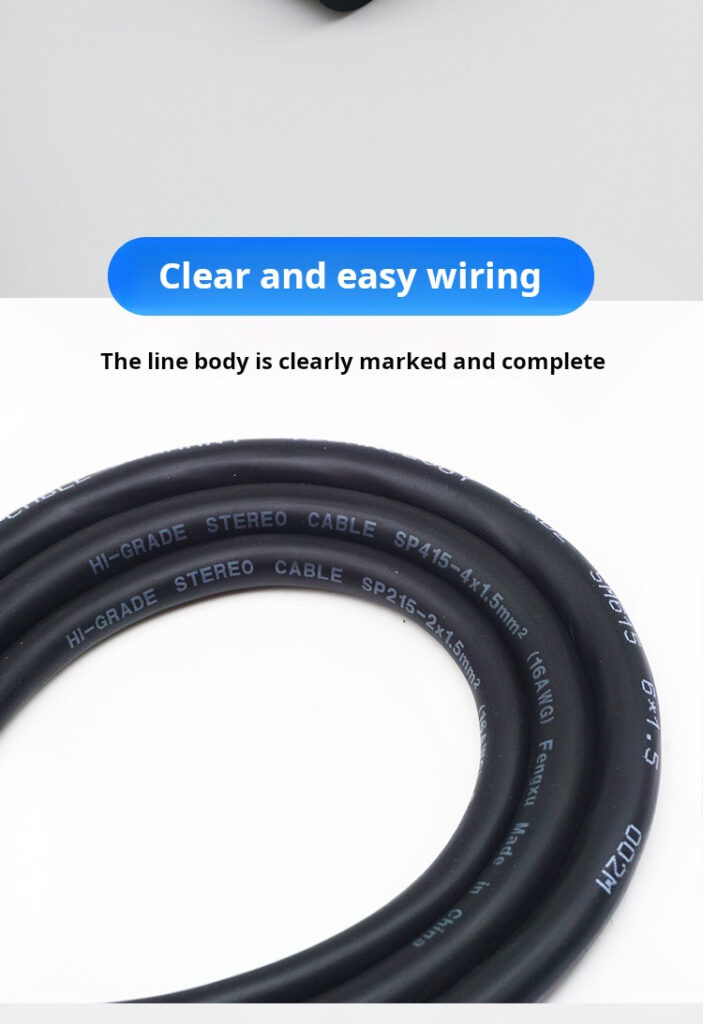

| Surface printing | GER SOMMER-SPEAKER-CABLE SP415-4×1.5mm2（16AWG) GERMANY | ||
| 3、Electrical Characteristics | |||
| Project | Unit | Details | |
| Max.Conductor DC Resistance | Ω/km(20℃) | / | |
| Dielectnic Withstand (AC) | KV/5Min | 2.0 | |
| rated voltage | V | 300/300 | |
| Rated temperature | ℃ | 60 | |
| Product Standard Certification | – | / | |
