Cat5e Ethernet Patch Cable Technical Specification Sheet
Product Overview
Product Name: Cat5e RJ45 Ethernet Patch Cables (UTP/FTP/SFTP)
Model Series: CAT5E-[Shield Type]-[Length] (e.g., CAT5E-UTP-1M, CAT5E-SFTP-20M)
Application: High-speed data transfer for computers, routers, switches, IP cameras, and network devices.
Key Specifications
1. General Parameters
Cable Category: Cat5e (Enhanced Category 5)
Standards Compliance:
TIA/EIA-568-B
ISO/IEC 11801 Class D
RoHS compliant.
Shielding Types:
UTP (Unshielded Twisted Pair): Basic EMI protection for general environments.
FTP (Foiled Twisted Pair): Aluminum foil shielding for moderate interference resistance.
SFTP (Shielded/Foil Twisted Pair): Dual-layer shielding (foil + braid) for high EMI/RFI environments.
2. Performance
Bandwidth: 100 MHz.
Data Transfer Rate: Up to 1 Gbps (1000BASE-T Gigabit Ethernet).
Maximum Distance: 100 meters (328 ft) for full-channel performance.
3. Cable Construction
Conductor: 24 AWG bare copper wires.
Twist Configuration: 4 twisted pairs with varying twist rates to minimize crosstalk.
Jacket Material: PVC (flexible, durable) or LSZH (low smoke, halogen-free for fire safety).
Cable Diameter: ~5.0–7.0 mm (varies by shielding type).
4. Connectors
RJ45 Plug: 8P8C gold-plated contacts for corrosion resistance.
Strain Relief: Flush-molded boot for enhanced durability.
5. Length Options
Standard Lengths: 1m, 2m, 3m, 5m, 10m, 20m.
Custom Lengths: Available upon request.
6. Environmental Ratings
Operating Temperature: -20°C to 60°C.
Storage Temperature: -40°C to 75°C.
Versatility: Compatible with 10/100/1000 Mbps networks, PoE (Power over Ethernet), and VoIP.
Durability: Braided jacket options available for industrial use (e.g., Delock Cat6A S/FTP).

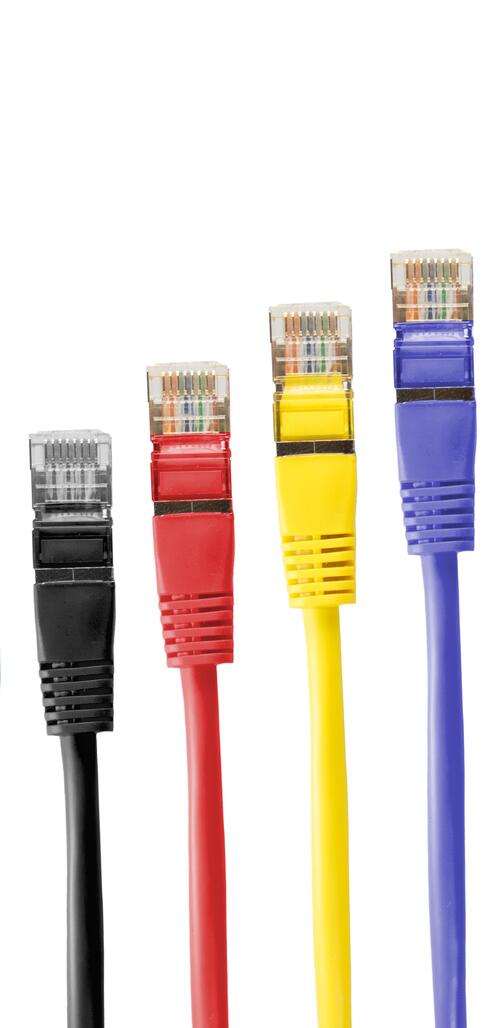

Color Variants: Black, white, red, blue, green, yellow, etc., for easy cable management.
Packaging & Certifications
Packaging: Individually sealed in anti-static poly bags or retail-ready boxes.
Certifications: UL listed, CE/FCC compliant.
