RS-232/423 Low Cap, #24-8c, FPO, O/A Foil+Braid, PVC Jkt, CM

RS-232/423 Low Cap, #24-8c, FPO, O/A Foil+Braid, PVC Jkt, CM

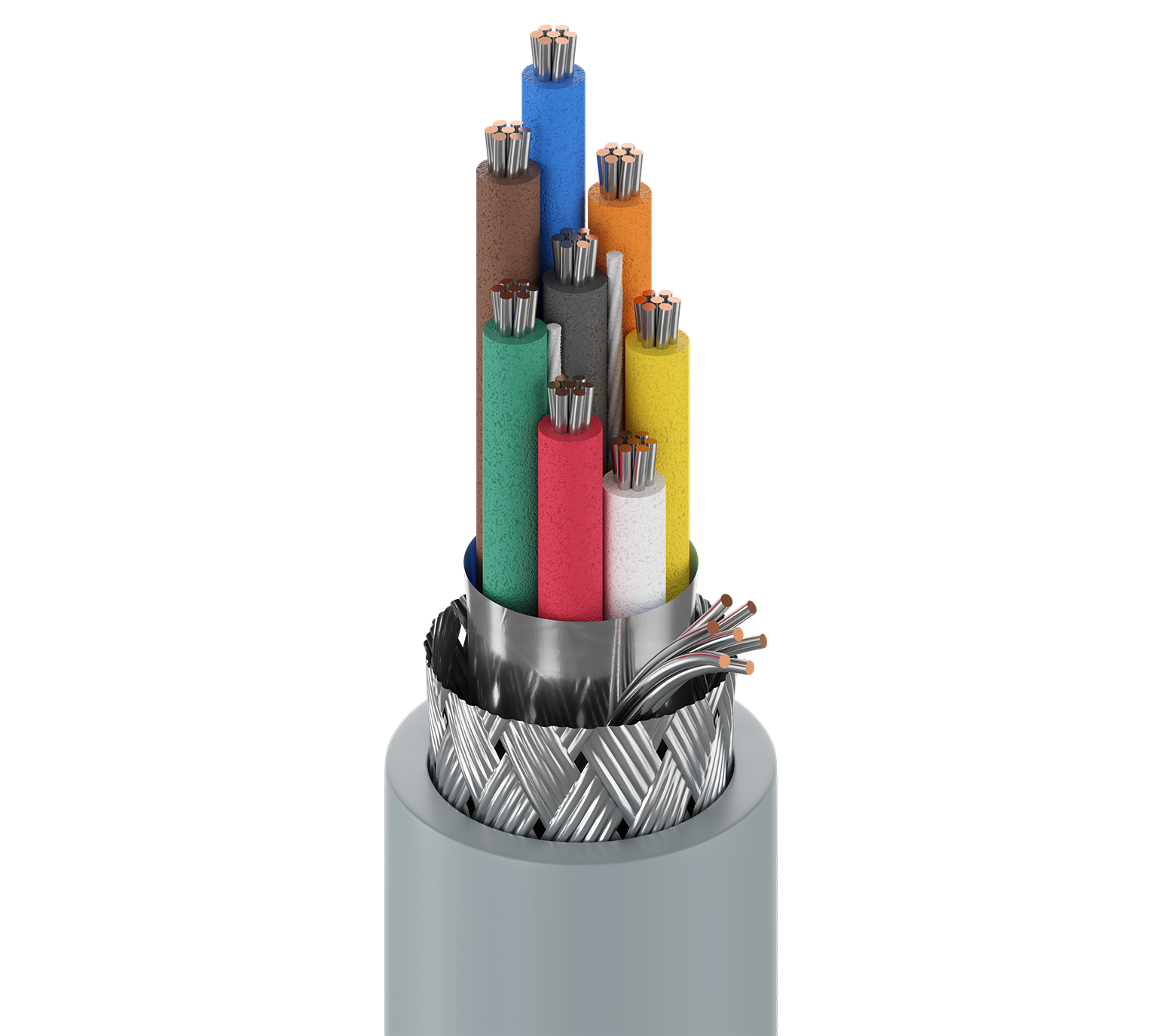

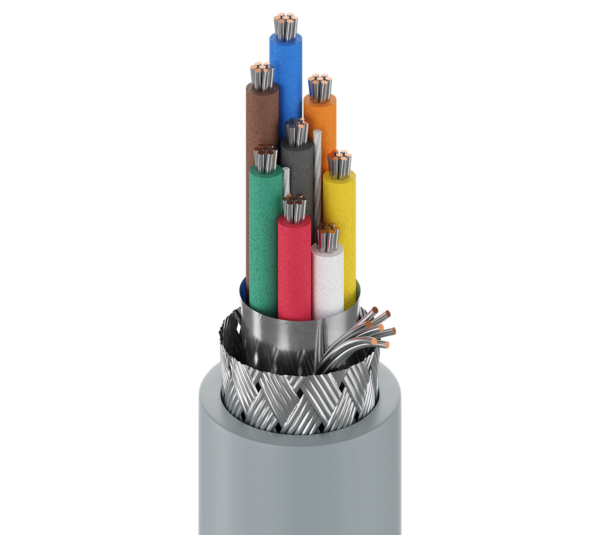

Computer EIA RS-232/423 Cable, 24 AWG stranded (7×32) tinned copper conductors,insulation, overall  (100% coverage) + tinned copper braid shield (65% coverage), drain wire, PVC jacket.



Categories: ,
RS-232/423 Low Cap, #24-8c, FPO, O/A Foil+Braid, PVC Jkt, CM
RS-232/423 Low Cap, #24-8c, FPO, O/A Foil+Braid, PVC Jkt, CM

Construction DetailsClick to view more products

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Conductor(s)824 AWG7×32TC – Tinned Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PE – Polyethylene (Foam)0.013 in (0.33 mm)0.049 in (1.2 mm)Black, White, Red, Green, Brown, Blue, Orange, Yellow
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7×32) TC
BraidTinned Copper (TC)65%
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC – Polyvinyl Chloride0.035 in (0.89 mm)0.267 in (6.78 mm)
Overall Cable Diameter (Nominal)0.267 in (6.78 mm)
Electrical Characteristics
Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Nom. Velocity of Prop.Max. Current
Conductor(s)24 Ohm/1000ft12 pF/ft (39 pF/m)22 pF/ft (72 pF/m)78%1.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)
Mechanical Characteristics
Temperature
UL TemperatureOperating
60°C (UL CM);80°C (UL AWM 2464)-30°C to +80°C
Bend Radius
Stationary Min.Installation Min.
3.2 in (81 mm)3.2 in (81 mm)
Max. Pull Tension68 lbs (31 kg)
Bulk Cable Weight42 lbs/1000ft
Standards and Compliance
Environmental SuitabilityIndoor (Not Riser or Plenum), Indoor
SustainabilityCA Prop 65
Flammability / Reaction to FireUL 1685 UL loading , IEC 60332-1-2
CPR ComplianceCPR Euroclass: Eca
NEC / UL ComplianceArticle 800, CM
AWM ComplianceAWM 2919
CEC / C(UL) ComplianceCM
European Directive ComplianceEU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation ComplianceUKCA Mark
APAC Compliance

China RoHS II (GB/T 26572-2011)
